YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming

Name: YX513161000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming
Brand: NKH MACHINERY
Price: 1 USD

China YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming wholesale

Brand Name : NKH MACHINERY

Model Number : YX51-316-1000

Certification : CE/SONCAP/CSA

Place of Origin : CHINA

MOQ : 1 UNIT

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 UNITS/MONTH

Delivery Time : 90 WORKING DAYS

Packaging Details : NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET

Name : Metal Deck Roll Forming Machine

Uncoiler Capacity : 10Tons or as per request

Raw material : GI, 345Mpa

Roller material : 45# steel, hard chrome coated

Shaft Diameter : 95mm

Control system : PLC control system

Cutting blade material : Cr12, heat treatment

Contact Now

YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming

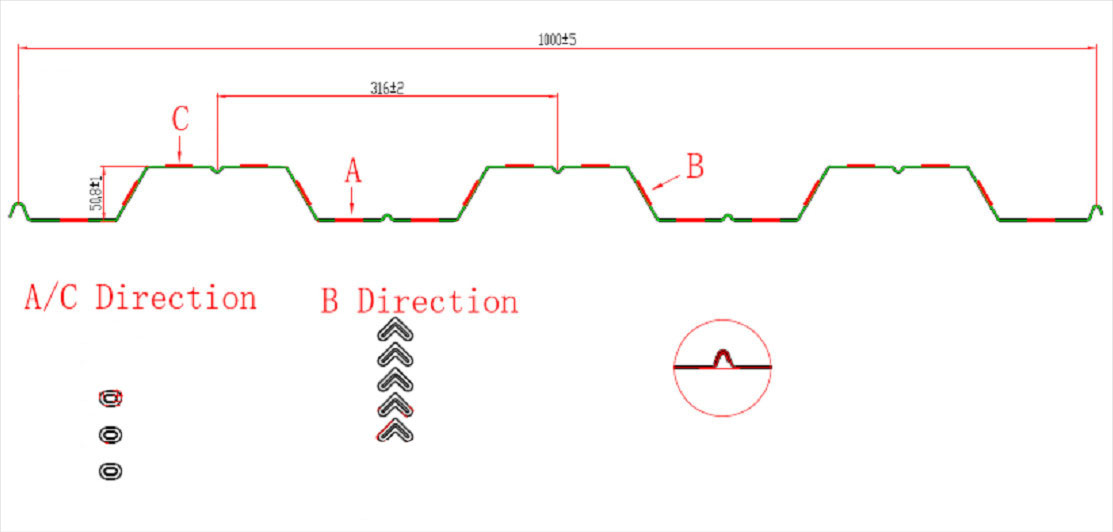

YX51-316-1000 Decking Roll Forming Machine

Description/Technical Parameter of Complete Line:

Quick Detail:

Thickness : 0.7-0.9mm
Material : Galvanized sheets, G350
Material weight : 10tons
Coil inner diameter : 510mm+/-+30mm
Driven way: by driven motor
Cutting way: by hydraulic group
Cutting tolerance : ±2mm

Application:

Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permanent steel base for poured reinforced concrete floor slabs.
Architectural deck: This kind of steel deck offers architects and engineers the ability to create amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck: Where a bridge has main beams installed at suitable centers, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.
